Super Mirror 201 304 Etching Stainless Steel Plate
| 원래 장소 | 중국 |
|---|---|
| 브랜드 이름 | MBT |
| 인증 | ISO, AISI, ASTM, GB, EN, DIN, JIS |
| 모델 번호 | 201 |
| 최소 주문 수량 | 1 개 PC |
| 가격 | 30-40 USD |
| 포장 세부 사항 | 나무 케이스 |
| 배달 시간 | 7-15 근무일 |
| 지불 조건 | l/c, d/a, d/p, t/t |
| 공급 능력 | 7000-8000 톤/월 |
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 유형 | 에칭 된 스테인레스 스틸 시트 | 표준 | ASTM, AISI, GB, JIS, DIN, EN |
|---|---|---|---|
| 등급 | 304무강 | 모양 | 시트 |
| 기술 | 광택/에칭 | 표면 처리 | 미러/에칭 |
| 컬러 코팅 | 황금/은 | PVC 필름 | 70 미크론 PVC 필름 |
| 두께 | 1.00mm | 크기 | 1219x3048mm |
제품 설명

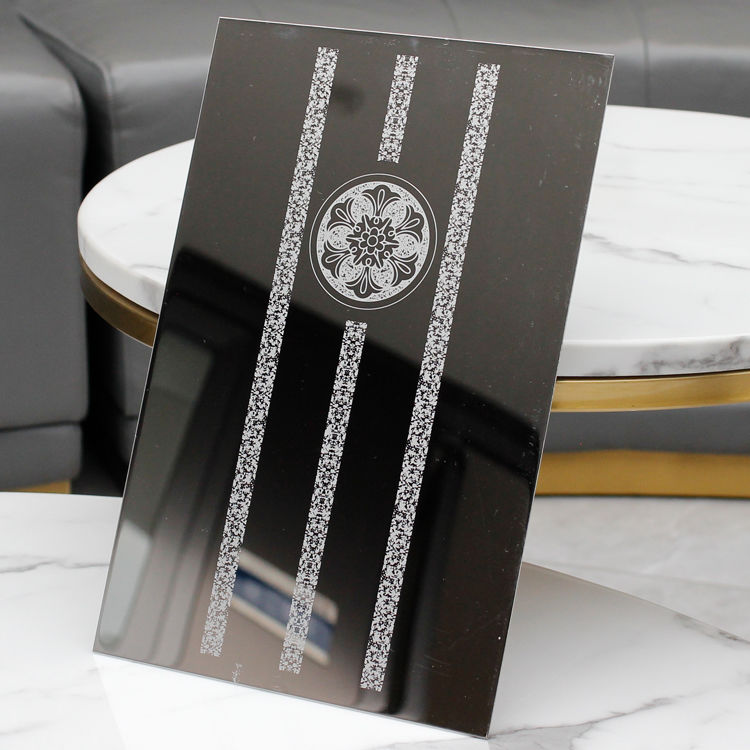

Super Mirror 201 304 Etching Stainless Steel Plate
- Type: Etched Stainless Steel Sheet
- Standard: ASTM/AISI/GB/JIS/DIN/EN
- Packing: Wooden Pallet
- PVC Film:70 Micron PVC Film
- Delivery: Normally 7-15 days
- Material: Grade 304 Stainless Steel
- Feature: Sustainable
- Usage: Ceiling/Door/Wall
Application
Stainless steel etched sheet are being used on projects all over the world for exterior wall cladding, roofing, column covers, doors, signage, bridge cladding, commercial and residential kitchens, buses, trains, and airplane food handling equipment and so on.
| Grade | STS 304 | STS 316 | STS 430 | STS 201 |
|---|---|---|---|---|
| Elong(10%) | Above 40 | 30MIN | Above 22 | 50-60 |
| Hardness | ≤200HV | ≤200HV | Below 200 | HRB100,HV230 |
| Cr(%) | 18-20 | 16-18 | 16-18 | 16-18 |
| Ni(%) | 8-10 | 10-14 | ≤0.60% | 0.5-1.5 |
| C(%) | ≤0.08 | ≤0.07 | ≤0.12% | ≤0.15 |
| Product Information | |
| Type | Stainless Steel Sheet |
| Thickness | 0.3-3.0mm |
| Size | 1000*2000mm,1219*2438mm,1219*3048mm,customized ,max width 1500mm |
| Grade | 201 / 304 / 304L / 316 / 316L / 430 / 410 / etc |
| Available Finished | NO.4 / Hairline / Mirror / Etched / PVD Color / Embossed / Vibration / Sandblast / Combination / Lamination/ etc |
| Available Color | Gold / Rose gold / Blue / Champagne Gold / Copper / Bronze / Black / Purple / Green / etc |
| Origin | POSCO / JISCO / TISCO / LISCO / BAO STEEL / etc. |
| Packing way | PVC+ waterproof paper + strong sea-worthy wooden package |
|
Surface |
Definition |
Application |
| 2B |
Finished by heat treatment , picking or equivalent cold rolling , followed by skin pass to obtain adequate luster surface.
|
With bright and smooth surface ,easy for further grinding to obtain brighter surface ,suitable for medical instruments ,milk containers ,tableware and so on.
|
| BA |
Bright heat treatment after cold rolling.
|
Structural members .etc.kitchen utensil ,cutlery ,electric appliances ,medical instruments ,building decorations ,etc.
|
| NO.3/NO.4 |
Polished with No.150-240 abrasives.
|
Milky food processing equipment , medical instruments ,building decorations.
|
| HL |
Finished by polishing with abrasives of suitable grain size to obtain continuous streaks.
|
Building decorations ,such as elevators ,escalators ,door etc.
|
| 6K/8K |
A mirror-like reflective surface ,which is obtained by polishing with successively finer abrasives and buffing extensively with all grit lines are removed.
|
Building entrances,bulking column casting ,elevator's wall doors ,counters,sculptures etc. |
FAQ
Q1: WHO IS MEIBAOTAI ?
A1: Meibaotai Stainless Steel Products Co., Ltd.,which is the largest stainless steel products manufacturing and storing base for South China.
Q2: COULD WE GET A SAMPLE BEFORE A FORMAL ORDER?
A2: Yes, we can provide a sample before order. Checking a sample is a best way to understand the detail quality.
Q3: HOW DOES YOUR COMPANY DO REGARDING QUALITY CONTROL?
A3: We'll keep tracing feedback of our products from clients and that's what make us different from other suppliers. We're customer care enterprise.
Q4:WHAT’S THE PAYMENT TERM?
A4:When we quote for you,we will confirm with you the way of transaction,FOB,CIF,CNF,etc. For mass production goods, you need to pay 30% deposit before producing and70% balance against copy of documents.The common way is by T/T. L/C is also acceptable.
Q5:WHAT PRODUCTS CAN YOU OFFER?
A5:MBT’s main products include 201/304/430 stainless steel coil and sheets,all different styles of etched and embossed,surface finished will be customized.
Q6:WHAT IS YOUR DELIVERY TIME AND THE SUPPLY ABILITY?
A6:The delivery time normally within 20~25working days,we can supply about 7000-8000tons every month.
Description Of Etched Stainless Steel Sheet
Etched finish is created by a screen printing the protective acid resistant to a polished surface and acid etching the unprotected areas.The etching removes a thin layer of stainless steel and roughens the surface.And etched stainless steel sheet is a type of decorative stainless steel that has undergone a chemical or mechanical process to create patterns, designs, or textures on its surface.The etching process selectively removes material from specific areas, resulting in a contrast between the etched and unetched regions.This creates intricate and precise designs that are both aesthetically pleasing and durable.
Advantage Of Etched Stainless Steel Sheet
MEIBAOTAI has advanced production line, using professional materials, screen and ink, adopting development technology to make perfect etching effect. We can meet your own etched stainless steel design needs. Etched stainless steel sheets can be made with all-inclusive patterns, custom patterns, and even unique styles and patterns.
