AISI 표준 패턴 에치드 스테인리스 스틸 시트

원래 장소 중국
브랜드 이름 MBT
인증 ISO, AISI, ASTM, GB, EN, DIN, JIS
모델 번호 201
최소 주문 수량 1 PC
가격 30-40 USD
포장 세부 사항 목재 케이스
배달 시간 7~15일
지불 조건 L/C, D/A, D/P, T/T
공급 능력 7000-8000 톤 / 달

무료샘플과 쿠폰을 위해 나와 연락하세요.

왓츠앱:0086 18588475571

위챗: 0086 18588475571

스카이프: sales10@aixton.com

만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.

x
제품 상세 정보
종류 에칭 스테인레스 강판 표준 ASTM, AISI, GB, JIS, DIN, EN
등급 304 스테인레스 강 형태 시트
기술 폴란드어/에칭 표면 처리 미러/에칭
칼라코팅 금빛 / 은 PVC 필름 70 미크론 PVC 필름
두께 1.00mm 크기 1219x3048mm
강조하다

에칭 스테인레스 강판

,

AISI 표준 에치드 스테인리스 스틸 시트

,

패턴 에치 된 스테인리스 스틸 시트

메시지를 남겨주세요
제품 설명









Hot Sale Pattern Etched Stainless Steel Sheet

  1. Type: Etched Stainless Steel Sheet
  2. Standard: ASTM/AISI/GB/JIS/DIN/EN
  3. Packing: Wooden Pallet
  4. PVC Film:70 Micron PVC Film
  5. Delivery: Normally 7-15 days
  6. Material: Grade 304 Stainless Steel
  7. Feature: Sustainable
  8. Usage: Ceiling/Door/Wall

Application

Stainless steel etched sheet are being used on projects all over the world for exterior wall cladding, roofing, column covers, doors, signage, bridge cladding, commercial and residential kitchens, buses, trains, and airplane food handling equipment and so on.






Chemical Composition
Grade STS 304 STS 316 STS 430 STS 201
Elong(10%) Above 40 30MIN Above 22 50-60
Hardness ≤200HV ≤200HV Below 200 HRB100,HV230
Cr(%) 18-20 16-18 16-18 16-18
Ni(%) 8-10 10-14 ≤0.60% 0.5-1.5
C(%) ≤0.08 ≤0.07 ≤0.12% ≤0.15



Product Information
Type Stainless Steel Sheet
Thickness 0.3-3.0mm
Size 1000*2000mm,1219*2438mm,1219*3048mm,customized ,max width 1500mm
Grade 201 / 304 / 304L / 316 / 316L / 430 / 410 / etc
Available Finished NO.4 / Hairline / Mirror / Etched / PVD Color / Embossed / Vibration / Sandblast / Combination / Lamination/ etc
Available Color Gold / Rose gold / Blue / Champagne Gold / Copper / Bronze / Black / Purple / Green / etc
Origin POSCO / JISCO / TISCO / LISCO / BAO STEEL / etc.
Packing way PVC+ waterproof paper + strong sea-worthy wooden package

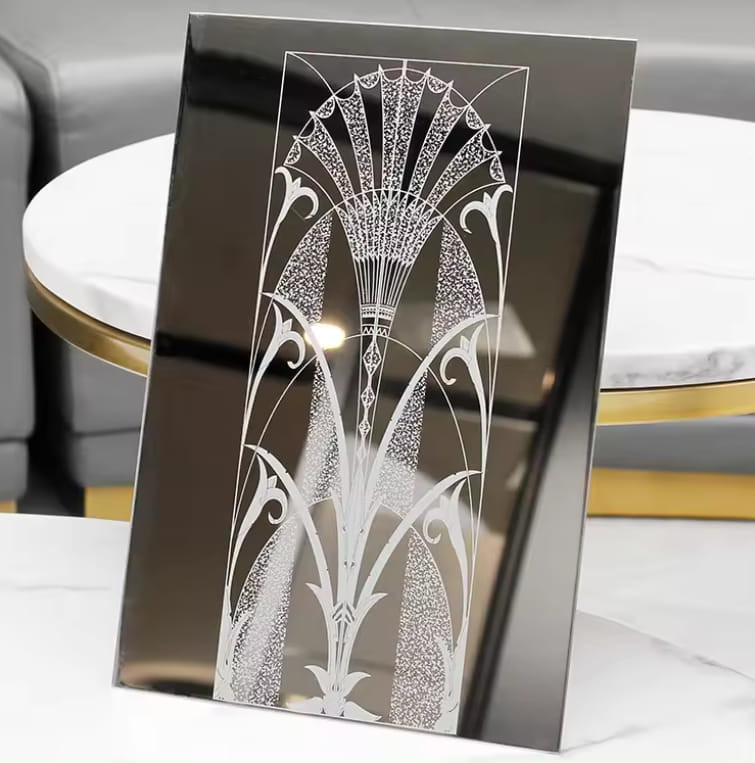

AISI 표준 패턴 에치드 스테인리스 스틸 시트 0

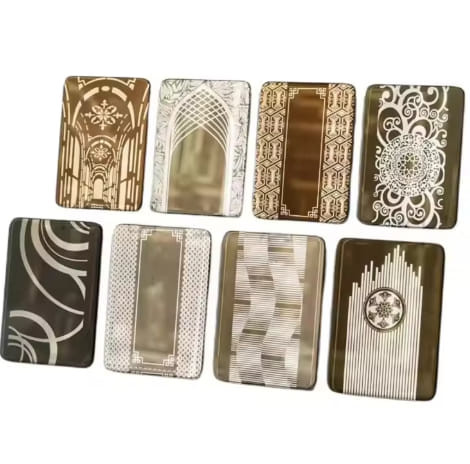

AISI 표준 패턴 에치드 스테인리스 스틸 시트 1

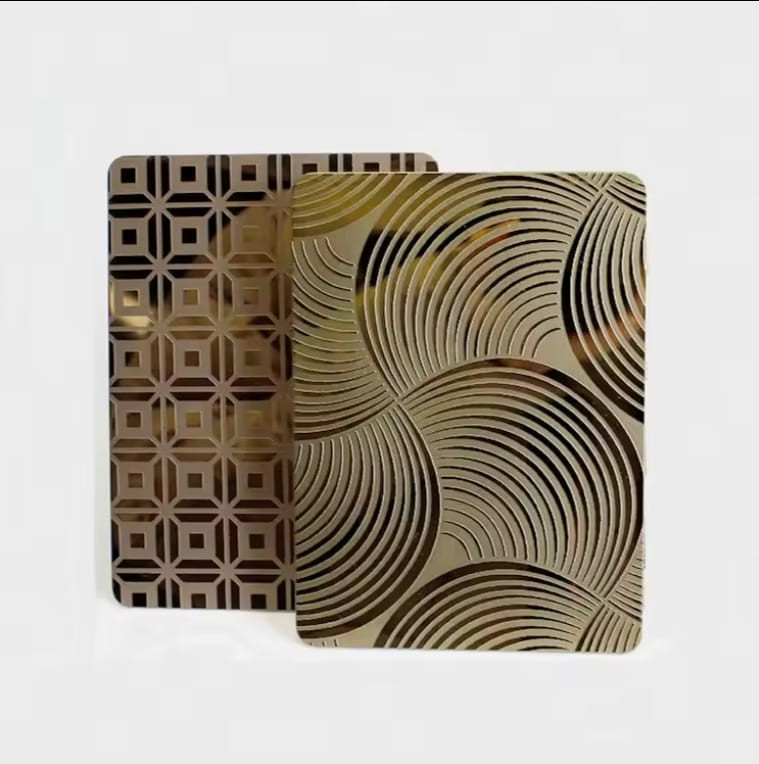

AISI 표준 패턴 에치드 스테인리스 스틸 시트 2AISI 표준 패턴 에치드 스테인리스 스틸 시트 3AISI 표준 패턴 에치드 스테인리스 스틸 시트 4



FAQ


Q1: HOW DOES YOUR COMPANY DO REGARDING QUALITY CONTROL?

A1: We'll keep tracing feedback of our products from clients and that's what make us different from other suppliers. We're customer care enterprise.



Q2:WHAT’S THE PAYMENT TERM?

A2:When we quote for you,we will confirm with you the way of transaction,FOB,CIF,CNF,etc. For mass production goods, you need to pay 30% deposit before producing and70% balance against copy of documents.The common way is by T/T. L/C is also acceptable.



Q3:WHAT PRODUCTS CAN YOU OFFER?

A3:MBT’s main products include 201/304/430 stainless steel coil and sheets,all different styles of etched and embossed,surface finished will be customized.



Q4:WHAT IS YOUR DELIVERY TIME AND THE SUPPLY ABILITY?

A4:The delivery time normally within 20~25working days,we can supply about 7000-8000tons every month.





Description Of Etched Stainless Steel Sheet

Etched finish is created by a screen printing the protective acid resistant to a polished surface and acid etching the unprotected areas.The etching removes a thin layer of stainless steel and roughens the surface.And etched stainless steel sheet is a type of decorative stainless steel that has undergone a chemical or mechanical process to create patterns, designs, or textures on its surface.The etching process selectively removes material from specific areas, resulting in a contrast between the etched and unetched regions.This creates intricate and precise designs that are both aesthetically pleasing and durable.



Advantage Of Etched Stainless Steel Sheet



MEIBAOTAI has advanced production line, using professional materials, screen and ink, adopting development technology to make perfect etching effect. We can meet your own etched stainless steel design needs. Etched stainless steel sheets can be made with all-inclusive patterns, custom patterns, and even unique styles and patterns.
